【微服务部署】使用Docker-compose部署Jenkins、SonarQube
一、安装
1、编写docker-compose部署Postgres、SonarQube、Jenkins的yml文件jenkins-compose.ymlPostgres：作为SonarQube的数据库存储SonarQube：代码质量检查Jenkins：jenkins/jenkins:lts镜像，jenkinsci/blueocean镜像缺少node运行时环境，导致node无法运行。关键配置说明（ 宿主机 : Docker容器）：/data/docker/ci/postgresql/data:/var/lib/postgresql/data # Postgres数据存储映射到宿主机目录/etc/localtime:/etc/localtime:ro # docker容器取宿主机的日期，:ro(read-only)表示只读，即docker容器只能读取宿主机的/etc/localtime文件，不能修改。/usr/lib64/libltdl.so.7:/usr/lib/x86_64-linux-gnu/libltdl.so.7 # 在docker容器中运行宿主机docker命令，如果宿主机没有这个文件，可以使用以下命令进行安装。这里将Docker容器的内存设置为10G，因为我们NodeJS打包需要设置的内存为8G。复制
yum install libtool-ltdl-2.4.2-22.el7_3.x86_641.
jenkins-compose.yml完整内容如下：
复制
version: 3
networks:
prodnetwork:
driver: bridge
services:
sonardb:
image: postgres:12.2
restart: always
ports:
- "5433:5432"
networks:
- prodnetwork
volumes:
- /data/docker/ci/postgresql:/var/lib/postgresql
- /data/docker/ci/postgresql/data:/var/lib/postgresql/data
- /etc/localtime:/etc/localtime:ro
environment:
- POSTGRES_USER=sonar
- POSTGRES_PASSWORD=sonar
- POSTGRES_DB=sonar
- TZ=Asia/Shanghai
sonar:
image: sonarqube:10.1.0-community
restart: always
ports:
- "19000:9000"
- "19092:9092"
networks:
- prodnetwork
depends_on:
- sonardb
volumes:
- /data/docker/ci/sonarqube/conf:/opt/sonarqube/conf
- /data/docker/ci/sonarqube/data:/opt/sonarqube/data
- /data/docker/ci/sonarqube/logs:/opt/sonarqube/logs
- /data/docker/ci/sonarqube/extensions:/opt/sonarqube/extensions
- /data/docker/ci/sonarqube/bundled-plugins:/opt/sonarqube/lib/bundled-plugins
environment:
- TZ=Asia/Shanghai
- SONARQUBE_JDBC_URL=jdbc:postgresql://sonardb:5432/sonar
- SONARQUBE_JDBC_USERNAME=sonar
- SONARQUBE_JDBC_PASSWORD=sonar
jenkins:
image: jenkins/jenkins:lts
user: root
privileged: true
restart: always
ports:
- "18080:8080"
networks:
- prodnetwork
volumes:
- /usr/bin/docker:/usr/bin/docker
- /var/run/docker.sock:/var/run/docker.sock
- /etc/docker/daemon.json:/etc/docker/daemon.json
- /usr/lib64/libltdl.so.7:/usr/lib/x86_64-linux-gnu/libltdl.so.7
- /etc/localtime:/etc/localtime:ro
- $HOME/.ssh:/root/.ssh
- /data/docker/ci/jenkins/lib:/var/lib/jenkins/
- /data/docker/ci/jenkins/home:/var/jenkins_home
depends_on:
- sonar
environment:
- TZ=Asia/Shanghai
- NEXUS_PORT=8081
- SONAR_PORT=9000
- SONAR_DB_PORT=5432
- JAVA_OPTS=-Xms512m -Xmx10240m
deploy:
resources:
limits:
cpus: "2.00"
memory: 10G
reservations:
memory: 200M
cap_add:
- ALL1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.
因并不是每个项目都需要自己的Maven私服，所以这里去除了Maven私服Nexus的部署，如果需要，直接在jenkins-compose.yml文件中添加即可：
复制
nexus:
image: sonatype/nexus3
restart: always
ports:
- "18081:8081"
networks:
- prodnetwork
volumes:
- /data/docker/ci/nexus:/nexus-data1.2.3.4.5.6.7.8.9.
在Jenkins的depends_on:添加。
复制
depends_on:
- nexus
- sonar1.2.3.
复制
mkdir -p /data/docker/ci/nexus /data/docker/ci/jenkins/lib /data/docker/ci/jenkins/home /data/docker/ci/sonarqube /data/docker/ci/postgresql /data/docker/ci/postgresql/data
chmod -R 777 /data/docker/ci/nexus /data/docker/ci/jenkins/lib /data/docker/ci/jenkins/home /data/docker/ci/sonarqube /data/docker/ci/postgresql /data/docker/ci/postgresql/data1.2.3.
复制
docker-compose -f jenkins-compose.yml up -d1.
复制
docker-compose -f jenkins-compose.yml down1.
复制
docker-compose -f jenkins-compose.yml up --force-recreate --no-deps 服务名称1.
复制
[root@root server]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
b28f1878ee08 jenkins/jenkins:lts "/sbin/tini -- /usr/…" 20 hours ago Up 19 hours 50000/tcp, 0.0.0.0:18080->8080/tcp docker-jenkins-1
cff7c0d88150 sonarqube:10.1.0-community "/opt/sonarqube/dock…" 20 hours ago Up 20 hours 0.0.0.0:19000->9000/tcp, 0.0.0.0:19092->9092/tcp docker-sonar-1
90dacc85efb1 postgres:12.2 "docker-entrypoint.s…" 20 hours ago Up 20 hours 0.0.0.0:5433->5432/tcp docker-sonardb-11.2.3.4.5.
复制
[root@root server]# docker logs -f b28f1878ee081.
复制
[root@root server]# docker restart b28f1878ee081.
复制

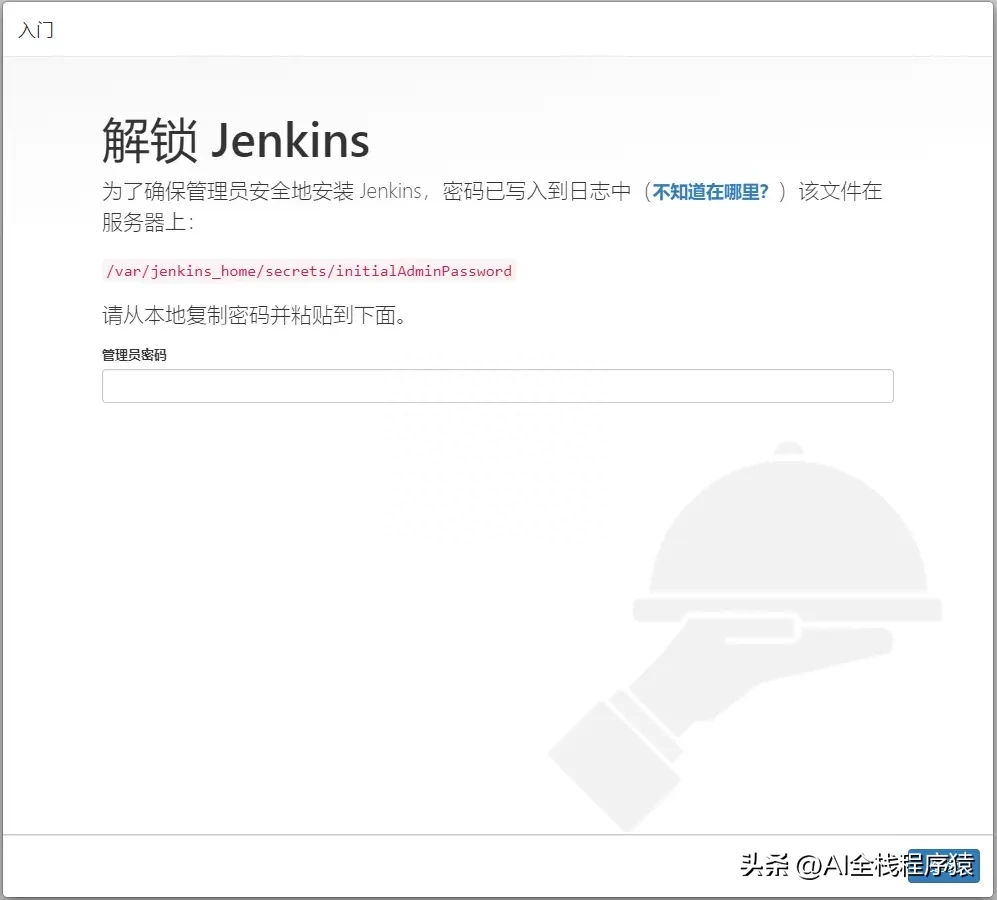

[root@ZvRiIw4706 docker]# cd /data/docker/ci/jenkins/home/secrets
[root@ZvRiIw4706 secrets]# ls
filepath-filters.d initialAdminPassword jenkins.model.Jenkins.crumbSalt master.key org.jenkinsci.main.modules.instance_identity.InstanceIdentity.KEY slave-to-master-security-kill-switch whitelisted-callables.d
[root@ZvRiIw4706 secrets]# cat initialAdminPassword1.2.3.4.

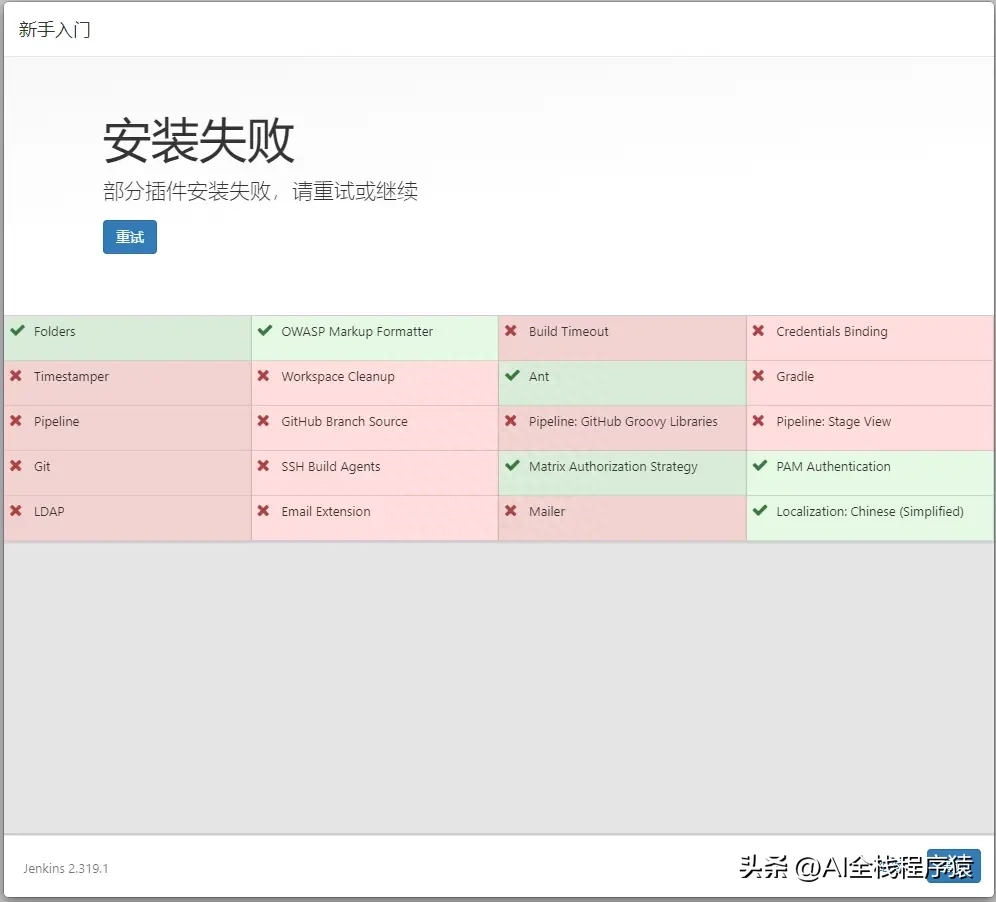

报错日志：
复制
2023-08-09 07:44:36.664+0000 [id=72] INFO h.m.UpdateCenter$UpdateCenterConfiguration#download: Downloading github-branch-source
2023-08-09 07:44:36.685+0000 [id=72] SEVERE h.model.UpdateCenter$DownloadJob#run: Failed to install github-branch-source
java.io.IOException: Failed to load: GitHub Branch Source Plugin (1696.v3a_7603564d04)
- Failed to load: GitHub plugin (1.34.5)
- Jenkins (2.346.1) or higher required
at hudson.PluginWrapper.resolvePluginDependencies(PluginWrapper.java:1016)
at hudson.PluginManager.dynamicLoad(PluginManager.java:917)
Caused: java.io.IOException: Failed to install github-branch-source plugin
at hudson.PluginManager.dynamicLoad(PluginManager.java:930)
at hudson.model.UpdateCenter$InstallationJob._run(UpdateCenter.java:2179)
Caused: java.io.IOException: Failed to dynamically deploy this plugin
at hudson.model.UpdateCenter$InstallationJob._run(UpdateCenter.java:2183)
at hudson.model.UpdateCenter$DownloadJob.run(UpdateCenter.java:1846)
at java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:515)
at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
at hudson.remoting.AtmostOneThreadExecutor$Worker.run(AtmostOneThreadExecutor.java:121)
at java.base/java.lang.Thread.run(Thread.java:829)1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.
二、配置

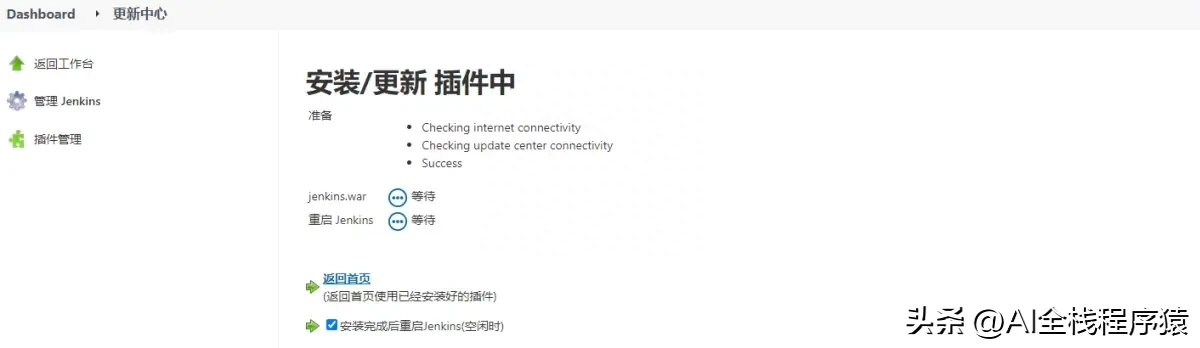

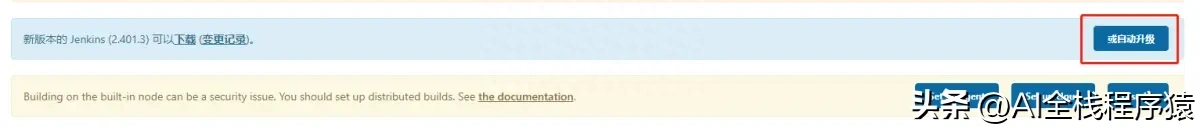

1、登录到Jenkins之后，首先进入系统管理然后升级Jenkins版本
复制

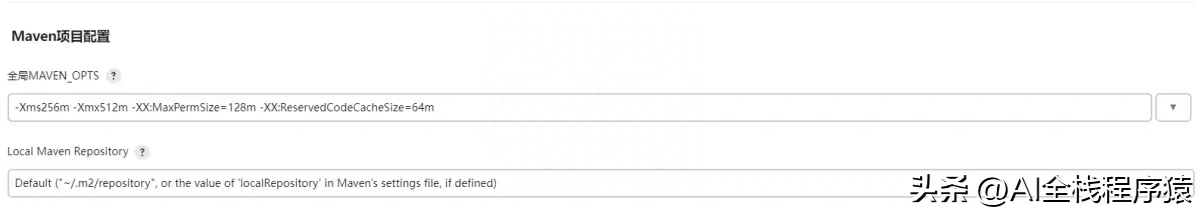

-Xms256m -Xmx512m -XX:MaxPermSize=128m -XX:ReservedCodeCacheSize=64m1.
复制

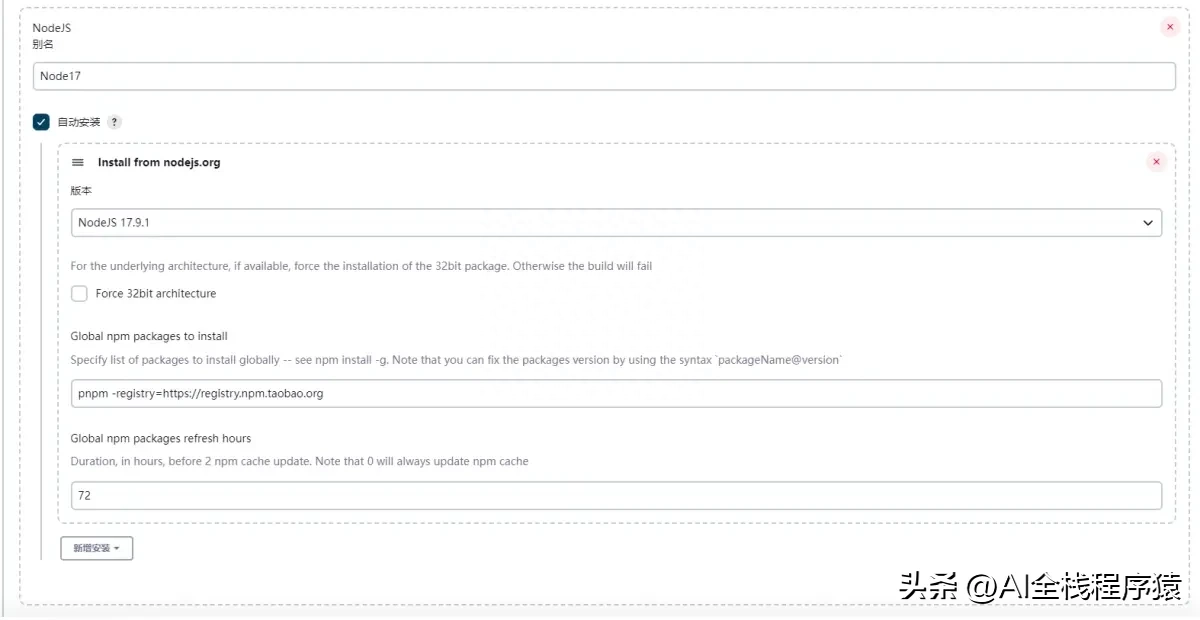

pnpm -registry=https://registry.npm.taobao.org1.
